22 11 001 Replacing right engine mount (N54)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Secure engine in INSTALLATION POSITION
Remove rear UNDERBODY PROTECTION
Lower FRONT AXLE SUPPORT

Release screws (1) and remove engine mount.

Tightening torque 22 11 1AZ .

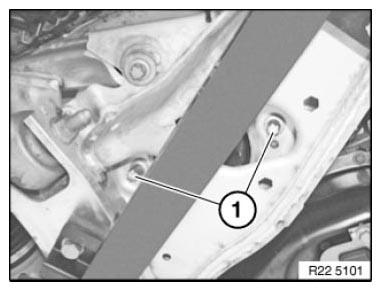

Fig 1: Identifying Engine Mount Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Stop (1) is mounted on engine support arm.

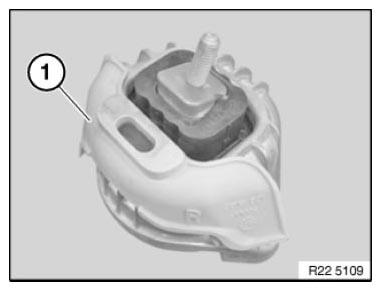

Fig 2: Identifying Stop On Engine Support Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Rubber section (1) of engine mount must point to middle of vehicle.

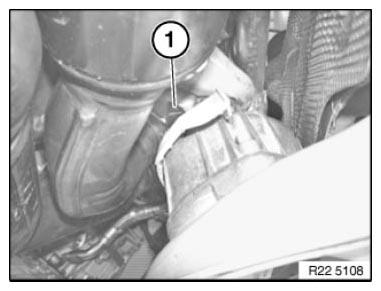

Fig 3: Identifying Engine Mount Rubber Section

Courtesy of BMW OF NORTH AMERICA, INC.
