52 14... Removing and installing carrier for outer cover on left or right front seat (Normal)
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove OUTER COVER

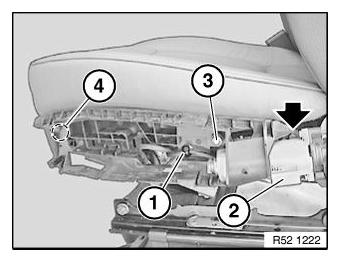

Cut open cable tie (1).
Unlock and disconnect plug connections (2) on servodrive.
Release screw (3).
Tightening torque 52 10 06AZ .
Unclip carrier in marked area and remove.
Installation:
Replace cable ties.
Make sure carrier is correctly seated on seat mechanism.
