32 21 231 Replacing (removing and installing) left or right track rod
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 32 3 160
IMPORTANT:
The steering box must be replaced if the polished surface of the rack is damaged (e.g. by corrosion)!
Necessary preliminary tasks:
- Remove TRACK ROD END FROM SWIVEL BEARING
- Remove GAITER FROM STEERING BOX and slide back
IMPORTANT:
To avoid damage to rack and to suspension mounting, move rack in as far as possible.

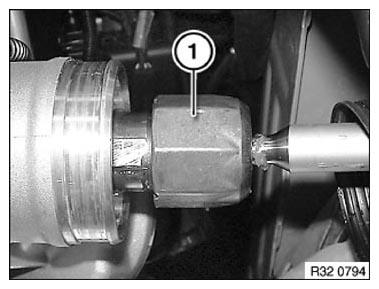

Undo the joint (1) using special tools 32 3 160 at the steering box rack.
Tightening torque 32 21 1AZ .
Installation note:
Clean rack.
Check surface of rack for damage (e.g. corrosion).
Lightly grease rack (lubricating grease FB-1: part number part number 2 208 093).
On replacement, assemble new part with gaiter:

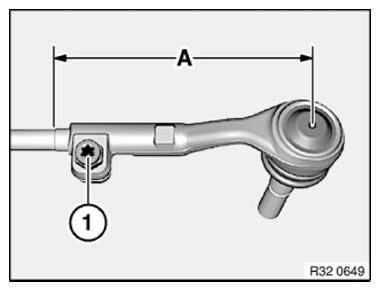

- Determine dimension (A) to simplify following adjustment of front axle
Installation note:
Slacken clamping bolt (1) and screw off track rod end.
Tightening torque 32 21 3AZ .
Slide gaiter with ear clip and band clamp on track rod.
Screw in track rod end to dimension (A).
After installation:
- Only if replacing/removing track rod end: Perform wheel alignment check. See ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT (WITHOUT VEHICLE LOAD) .
