32 21 151 Replacing left or right track rod end

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the track rod end to track rod screw connection is released, it is necessary after reinstallation to carry out a chassis/wheel alignment check.

Release nut (1), if necessary, grip at inner Torx socket.

Tightening torque 32 21 2AZ .

Remove track rod end (2) from swivel bearing.

Installation note:

Keep track rod end to swivel bearing connection clean and free from oil and grease.

Replace self-locking nut.

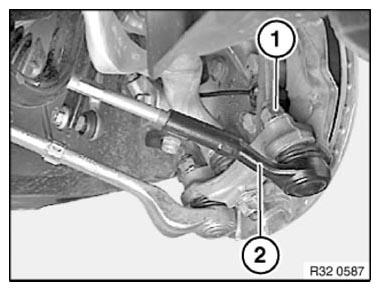

Fig 1: Identifying Track Rod End And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Determine dimension (A) to simplify following adjustment of front axle.

Slacken bolt (1).

Tightening torque 32 21 3AZ .

Screw off track rod end; if necessary, grip track rod with open-end spanner.

Installation note:

Check GAITER for damage, replace if necessary.

Screw track rod end onto track rod to dimension (A).

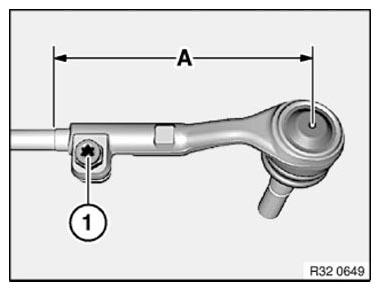

Fig 2: Checking Track Rod End Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Perform wheel alignment check. See ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT (WITHOUT VEHICLE LOAD) .
