32 31 102 Replacing steering shaft sleeve
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Undo STEERING SHAFT at the steering column (in engine compartment)
- Put steering column in position "top" and "expanded"
- Remove TRIM PANEL FOR PEDAL MECHANISM

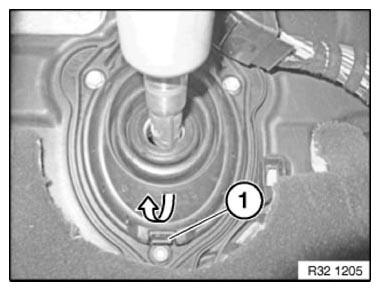

Press lock (1) downwards and remove sleeve.
Installation note:
First insert sleeve in top of guide and clip in at the bottom.
Sleeve must snap audibly into place!
