51 76 040 Removing and installing/replacing windscreen frame sealing

Necessary preliminary tasks:

• Open folding roof
• Remove TRIM STRIPS FROM WATER CHANNEL

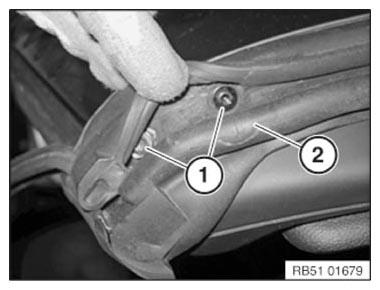

Release screws (1) on windscreen frame seal (2).

Fig 1: Identifying Windscreen Frame Seal And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully wind out seal (1) (windscreen breakage).

Release all screws (2) on windscreen frame strip (3).

Fig 2: Identifying Seal And Screws On Windscreen Frame Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

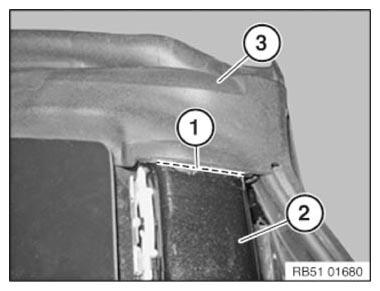

To ensure leak-tightness, butyl cord must be inserted between A-pillar (2) and windscreen frame seal (3) in marked area (1).

Butyl rope:

Length = 40 mm

Dia. = 4 mm

Fig 3: Identifying Butyl Cord Area Between A-Pillar And Windscreen Frame Seal (Marked Area)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert windscreen frame strip (1) over entire length into

A-pillar seal (2).

When seal (2) is removed, tear-off lip (3) can tear off and remain in vehicle.

Fig 4: Inserting Windscreen Frame Strip Over Entire Length

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement of sealing without windscreen removal:

Detach tear-off lip (3) from seal (2).

If adhesive leaks over tear-off lip (3) onto bridge, this area must be cut out partially.

To facilitate installation, coat seal (2) and body aperture with water.

Pay attention to center mark when installing seal (2).

1. Aluminum strip

Fig 5: Installing Sealing Frame (Without Windscreen Removed)

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement of sealing frame with removed or new windscreen:

Pay attention to center mark when installing sealing (2) with tear-off lip (3).

1. Aluminum strip

Fig 6: Installing Sealing Frame (Without Windscreen Removed)

Courtesy of BMW OF NORTH AMERICA, INC.

Check and if necessary adjust positioning of windscreen frame sealing to roof shell gasket.

For necessary operations, refer to:

ADJUSTMENT OF WINDSCREEN FRAME SEALING
