51 13 312 Removing and installing or replacing trim strip on roof gutter at left or right

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Feed out windscreen frame sealing (1) on side of gutter strip trim strip (2).

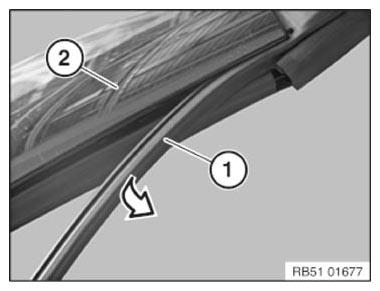

Fig 1: Removing Windscreen Frame Sealing

G11151905

Courtesy of BMW OF NORTH AMERICA, INC.

Release door seal (1) from A-pillar.

Unfasten screws (2).

Tightening torque 51 13 10AZ .

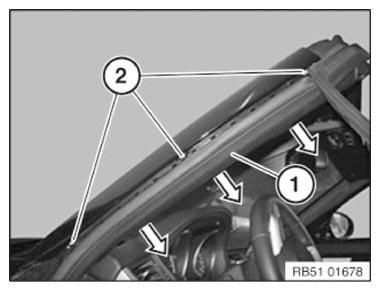

Fig 2: Releasing Door Seal From A-Pillar

G11151906

Courtesy of BMW OF NORTH AMERICA, INC.

Release gutter strip trim strip (1) from clips (2).

Installation note:

Clips (2) must not be missing or damaged.

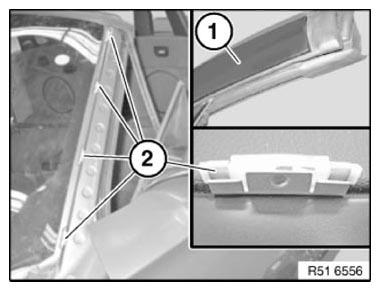

Fig 3: Identifying Gutter Strip Trim Strip And Clips

G11151907

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Bridge on gutter strip trim strip (1) must not trap sealing lip (2). Only then will gutter strip (3) function properly.

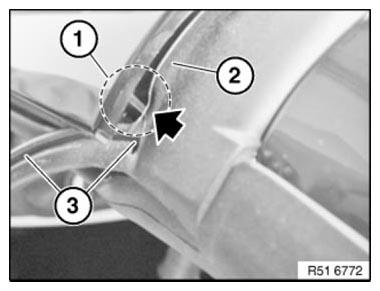

Fig 4: Locating Gutter Strip Trim Strip

G06911597

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

First clip in gutter strip trim strip (1), then screw it. Here, gutter strip trim strip (1) rests cleanly on and is flush with windscreen frame sealing (2).

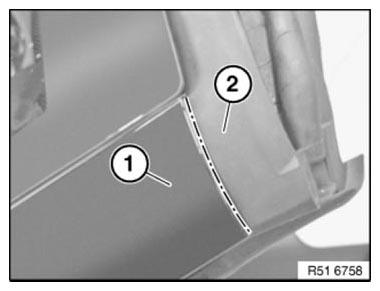

Fig 5: Identifying Gutter Strip Trim Strip And Windscreen Frame Sealing

G06911598

Courtesy of BMW OF NORTH AMERICA, INC.
