51 12 825 Removing and installing/replacing guide for rear center bumper
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear BUMPER TRIM

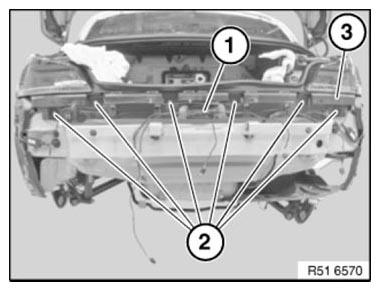

Detach wiring harness (1).
Unfasten screws (2).
Remove guide for bumper (3).
