51 45 195 Removing and installing/replacing trim for instrument panel, bottom right

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Move front passenger seat completely towards rear

ECE only:

Release screws (1).

Pull back trim for instrument panel (2)

Disconnect and unlock all plug connections.

Remove trim for instrument panel (2)

Installation:

Make sure trim for instrument panel (2) is correctly seated on footwell air outlet above.

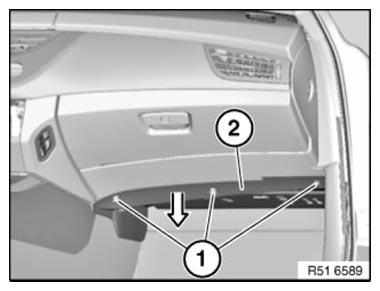

Fig 1: Removing Trim For Instrument Panel

Courtesy of BMW OF NORTH AMERICA, INC.

US only:

Release screws (1).

Pull back trim for instrument panel (2)

Disconnect and unlock all plug connections.

Remove trim for instrument panel (2)

Installation:

Make sure trim for instrument panel (2) is correctly seated on footwell air outlet above.

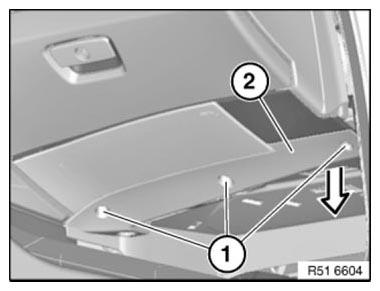

Fig 2: Removing Trim For Instrument Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Remove FOOTWELL LIGHT (1).

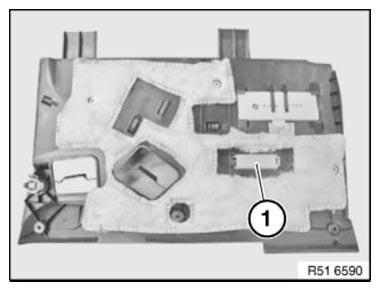

Fig 3: Identifying Footwell Light

Courtesy of BMW OF NORTH AMERICA, INC.
