51 16 040 Removing and installing/replacing housing on left or right outside mirror

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove MIRROR GLASS FOR MIRROR

Using special tool 00 9 317 , press mirror housing (1) off mirror and at same time bend open retaining hooks (3) with suitable tool.

In so doing, always position special tool 00 9 317 close to retaining hooks.

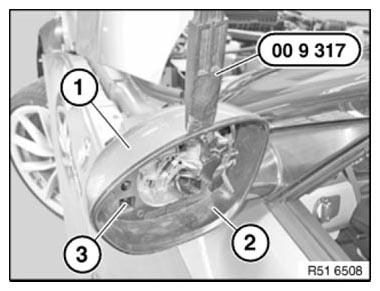

Fig 1: Pressing Mirror Housing Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on mirror housing (2) must not be damaged.

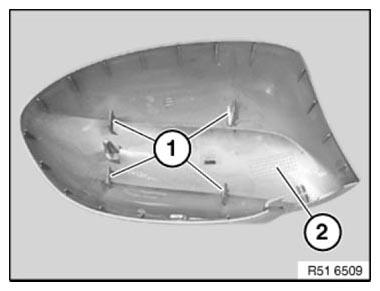

Fig 2: Identifying Catches On Mirror Housing

Courtesy of BMW OF NORTH AMERICA, INC.
