51 16 026 Replacing mirror glass

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: If mirror glass is damaged:
Wear protective goggles and tearproof gloves during the removal operation.

Risk of injury by flaking-off glass splinters.

The right side is removed in the same way as the left side.

Tilt mirror glass (1) upwards.

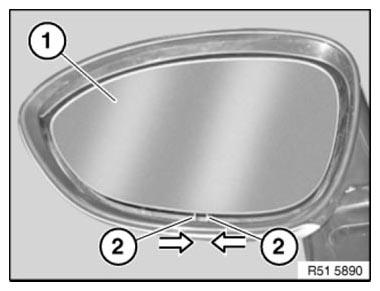

Bend visible wire ends (2) with a suitable tool in each case towards middle and then move in direction of arrow and disengage.

Release mirror glass (1) by tilting and remove.

NOTE: Look out for possible damage to mirror by tool.

Fig 1: Bending Visible Wire Ends

Courtesy of BMW OF NORTH AMERICA, INC.

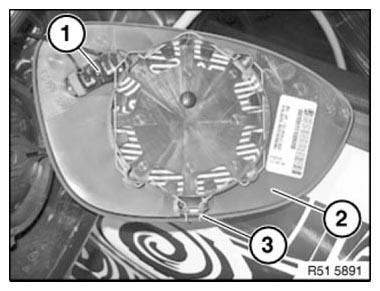

Disconnect plug connections (1) for mirror heating from mirror glass (2).

If necessary, disconnect plug connection for automatic anti-glare control from mirror glass (2).

Remove wire (3) from mirror glass (2).

Fig 2: Identifying Plug Connection, Mirror Glass And Wire

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of mirror glass must not be damaged or missing:

Connections for mirror heating
If necessary: guides for automatic anti-glare control cable
Guides for spring wire clip
Spring wire clip

Connect plug connection to mirror glass (2).

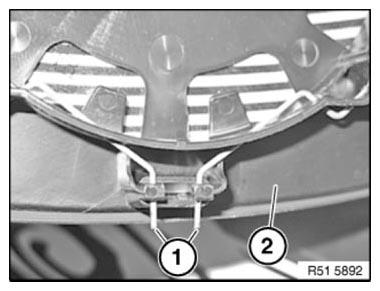

Clip both spring wire clip ends (1) into mirror glass (2).

Fig 3: Identifying Mirror Glass With Spring Wire Clip Ends

Courtesy of BMW OF NORTH AMERICA, INC.

Clip mirror glass (2) into mirror housing.

NOTE: Check function.
