61 31 037 Removing and installing/replacing light control unit

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FINISHER ON LEFT INSTRUMENT PANEL TRIM

Release screws (1).

Remove light switch unit (2) from trim (3).

Installation:

Make sure light switch unit (2) is correctly seated on trim (3).

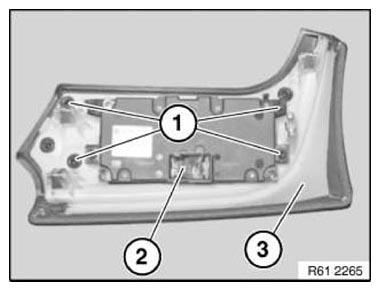

Fig 1: Identifying Light Switch Unit, Screws And Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
