63 31 020 Removing and installing/replacing footwell light

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (INTERIOR LIGHTS) .

Driver's side:

Unclip footwell light (1) in direction of arrow from panel for pedals (2), disconnect associated plug connection and remove footwell light (1).

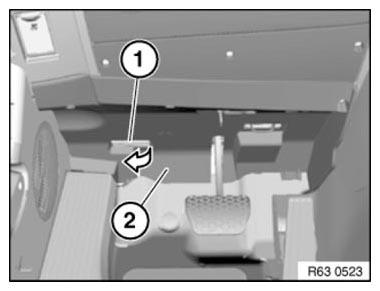

Fig 1: Opening Footwell Light (Drivers Side)

Courtesy of BMW OF NORTH AMERICA, INC.

Passenger side:

Unclip footwell light (1) in direction of arrow from bottom right instrument panel trim (2), disconnect associated plug connection and remove footwell light (1).

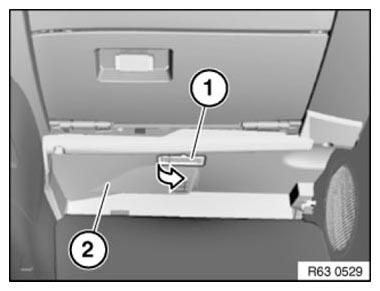

Fig 2: Opening Footwell Light (Passengers Side)

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remove BULB .
