51 33 000 Removing and installing/replacing power window regulator in left or right front door

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 3 300

WARNING: Risk of injury!
Carry out work on the power window regulator only when the power window motor is de-energized.

Necessary preliminary tasks:

Remove DOOR WINDOW GLASS

Release screws (1).

Tightening torque 51 21 16AZ .

Remove adapter for door speaker (2).

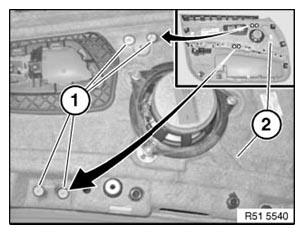

Fig 1: Identifying Adapter With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 21 17AZ .

Remove power window regulator flat motor (2) from door (3).

Fig 2: Identifying Door, Power Window Motor With Pole Retainer And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect plug connection (1) from power window regulator flat motor (2).

Fig 3: Identifying Power Window Regulator Flat Motor And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out assembly plug (1).

Unfasten screws (2).

Tightening torque 51 33 4AZ .

Release screw (3) with special tool 51 3 300 .

Tightening torque 51 33 4AZ .

Remove power window regulator (4).

Installation:

Engage drive cable (1) correctly in clips (2).

Adjust POWER WINDOW REGULATOR .

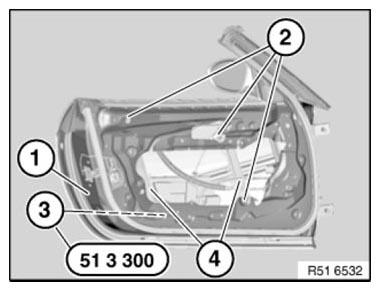

Fig 4: Removing Power Window Regulator Screw Using Special Tool (51 3 300)

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Release screws (3).

Tightening torque 67 62 1AZ .

Detach power window regulator flat motor (2) from power window regulator adapter plate (4).

Installation:

INITIALIZE POWER WINDOW .

Fig 5: Identifying Power Window Regulator Flat Motor And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
