51 47 131 Replacing front panel for luggage compartment floor

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL

Lever out expansion rivets (1).

Remove front luggage compartment floor trim (2).

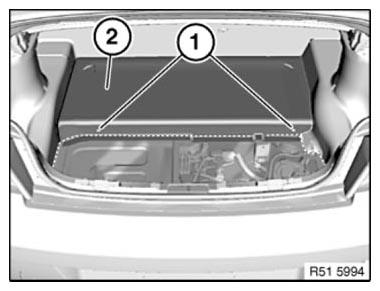

Fig 1: Identifying Front Luggage Compartment Floor Trim With Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.
