61 61... Adjusting left or right windscreen wiper
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
Correctly adjusting the contact angle of the wiper arms on the windscreen increases wiping quality. For adjustment, refer to the individual repair instruction.

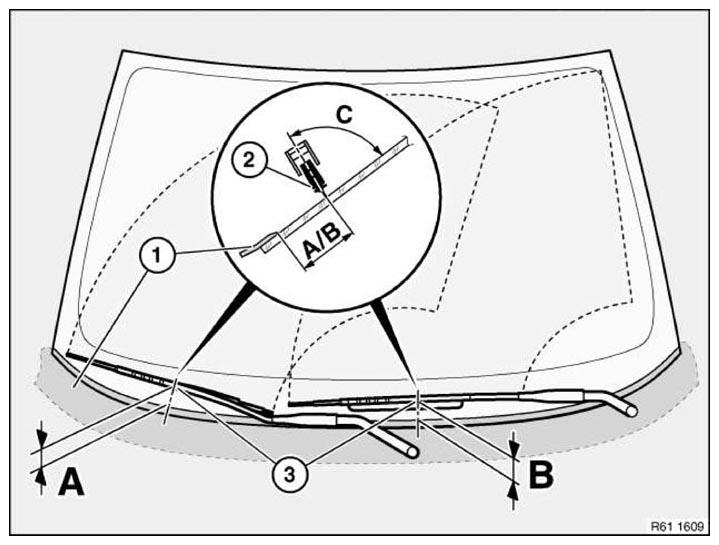

A/B = Distance between windscreen wiper blade (2) and trim panel on cowl panel (1)
NOTE:
Measurement is taken at the height of the locators (3) for the windscreen wiper arms
C= Contact angle between wiper blade center plane and windscreen
When adjusting with special tool 61 6 100 , set the scale value in accordance with the following table.
For RHD vehicles, change the preceding sign of the scale values.
- LHD cars, scale range 0 to --10
- RHD cars, scale range 0 to +10
| Model | Contact angle (C) on windscreen wiper arm | Scale value (LHD) on special tool | Adjustment dimension (A, B) on windscreen wiper arm | |||||
|---|---|---|---|---|---|---|---|---|
| Front passenger side | Driver side | Front passenger side | Driver side | Front passenger side | Driver side | Rear end | ||
| 1' | E81 | 85.5 ° +1.5° --1.0° | 85.5 ° +1.5° -1.0° | -5 | -5 | 47±3 mm | 54±3 mm | |
| E82 | 85.5 ° +1.5° --1.0° | 85.5 ° +1.5° -1.0° | -5 | -5 | 47±3 mm | 54±3 mm | ||
| E87 | 85.5 ° +1.5° --1.0° | 85.5 ° +1.5° -1.0° | -5 | -5 | 47±3 mm | 54±3 mm | ||
| E88 | 85.5 ° +1.5° --1.0° | 85.5 ° +1.5° -1.0° | -5 | -5 | 47±3 mm | 54±3 mm | ||
| 3' | E46 | 85.7° ±1° | 85.3° ±1° | -4 | -5 | |||
| E90 | 86.7° ±1° | 86.0° ±1° | -3 | -4 | 88±3 mm | 95 ±3 mm | ||
| E91 | 86.7° ±1° | 86.0° ±1° | -3 | -4 | 88±3 mm | 95 ±3 mm | 35±3 mm | |
| E92 | 86.7° ±1° | 86.0° ±1° | -3 | -4 | 75 ±3 mm | 84 ±3 mm | ||
| E93 | 86.7° ±1° | 86.0° ±1° | -3 | -4 | 75 ±3 mm | 84 ±3 mm | ||
| 5' | E39 | 86.5° ±1° | 86.5° ±1° | -4 | -4 | 60.1±1 mm | ||
| E60 | 86.0° ±1° | 86.0° ±1° | -4 | -4 | 69 ±3 mm | 87±3 mm | ||
| E61 | 86.0° ±1° | 86.0° ±1° | -4 | -4 | 69 ±3 mm | 87±3 mm | 30 ±3 mm | |
| 6' | E63 | 86.0° ±1° | 86.0° ±1° | -4 | -4 | 69 ±3 mm | 87±3 mm | |
| E64 | 86.0° ±1° | 86.0° ±1° | -4 | -4 | 69 ±3 mm | 87±3 mm | ||
| 7' | E38 | 87.0° ±1° | 87.0° ±1° | -3 | -3 | 65 ±3 mm | 58 ±3 mm | |
| E65 | 85.5° ±1° | 87.0° ±1° | - | - | 20±3 mm | 48±3 mm | ||
| E66 | 85.5° ±1° | 87.0° ±1° | - | - | 20±3 mm | 48±3 mm | ||
| E67 | 85.5° ±1° | 87.0° ±1° | - | - | 20±3 mm | 48±3 mm | ||
| 8' | E52 | 85.5° ±1° | 85.5° ±1° | -4 | -4 | 38 ±2 mm | 104 ±2 mm | |
| X | E53 | 85.0° ±1° | 85.0° ±1° | -5 | -5 | 54±3 mm | 55 ±3 mm | 32.5 ±2 mm |
| E70 | 85.6° ±1° | 85.0° ±1° | -4 | -5 | 103±3 mm | 90±3 mm | 39 ±2 mm | |
| E71 | 85.6° ±1° | 85.0° ±1° | -4 | -5 | 103±3 mm | 90±3 mm | ||
| E83 | 85.2° ±1° | 85.4° ±1° | -5 | -5 | 66 ±3 mm | 61 ±3 mm | 29 ±1 mm | |
| Z | E85/E89 | 85.5° ±1° | 85.5° ±1° | -4 | -4 | 57±2 mm | 52 ±2 mm | |
| E86 | 85.5° ±1° | 85.5° ±1° | -4 | -4 | 57±2 mm | 52 ±2 mm | ||
