61 31 208 Removing and installing/replacing switch for front lumbar support
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove OUTER COVER ON FRONT SEAT

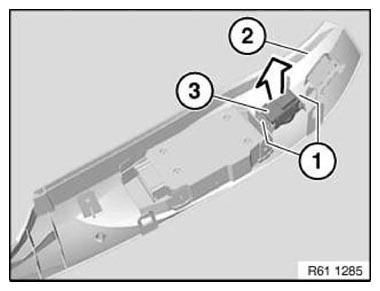

Expand catches (1) of cover (2).
Unclip switch for front lumbar support (3) in direction of arrow and remove.
