52 13 040 Removing and installing/replacing outer cover on left or right front seat backrest (Normal)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove FRONT SEAT

NOTE: Picture shows installed seat by way of example.

Raise lock (3) and lever out handle

for backrest angle adjustment and
for seat height adjustment with special tool 00 9 317 .

Fig 1: Removing Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 52 10 10AZ .

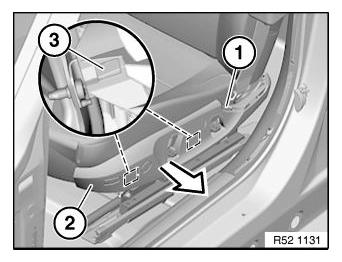

NOTE: Trim (2) is engaged in marked area.

Press lock (3) and pull trim (2) off seat mechanism.

If necessary, lever out carefully with special tool 00 9 317 .

Fig 2: Pulling Off Seat Mechanism Trim

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, unlock plug connection (1) for backrest width adjustment and disconnect.

If necessary, unlock plug connection (2) for lumbar support and disconnect.

Fig 3: Identifying Lumbar Support Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remove backrest width adjustment switch and lumbar support switch.

Installation:

Make sure backrest width adjustment and lumbar support switches are correctly engaged.
