61 31 204 Replacing switch combination for seat adjustment
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove OUTER COVER on front seat

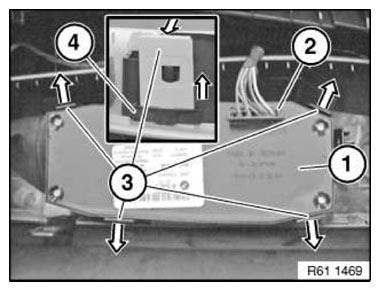

Disconnect plug connection (2).
Unlock retaining tabs (3) in direction of arrow and remove switch combination (1) from cover.
Installation:
Retaining tabs (3) of cover and guide (4) of switch combination (1) must not be damaged.
Make sure switch combination (1) is correctly seated in retaining tabs (3).
