61 31 172 Removing and installing/replacing switch for electromechanical parking brake
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Disconnect NEGATIVE BATTERY LEAD (to avoid fault memory entries)
- Remove TRIM FOR STORAGE TRAY

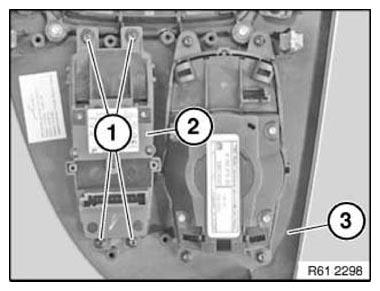

Release screws (1).
Remove switch for electromechanical parking brake (2) from trim for storage compartment (3).
