61 31 134 Removing and installing/replacing USB/audio interface connection socket

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM FOR STORAGE COMPARTMENT

Remove rear cover (1) from center console (2) in direction of arrow.

Disconnect plug connection underneath.

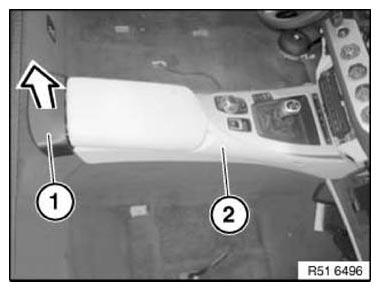

Fig 1: Removing Center Console Rear Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Release screw (2).

Raise center console (3) a little.

Open center console storage compartment lid (4).

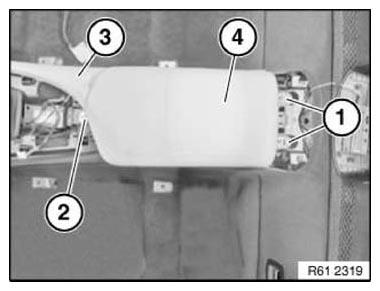

Fig 2: Identifying Center Console Storage Compartment Lid, Center Console, Screw And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Press connection socket (1) outwards out of center console (2).

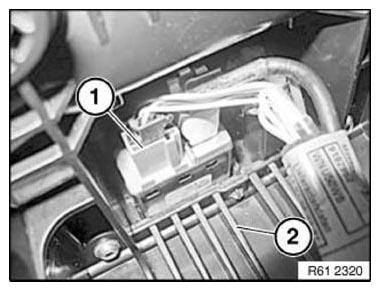

Fig 3: Identifying Center Console And Connection Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Remove connection socket (2).

Installation:

Make sure connection socket (1) is correctly seated in center console (2).

Retaining lugs (3) must not be damaged.

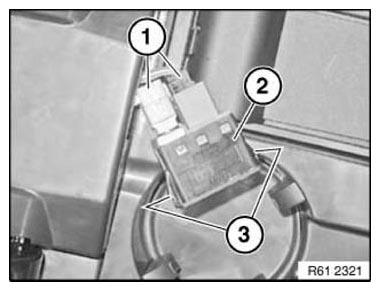

Fig 4: Identifying USB Audio Interface Connection, Plug Connections And Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
