61 31 083 Removing and installing/replacing switch for unlocking rear lid

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To unclip switch for unlocking rear lid (4), partially detach mucket (1).
Grip from outside behind footwell side trim panel on A-pillar on left (2).

Press retaining lugs (3) together and feed switch for unlocking rear lid (4) out of footwell side trim panel on A-pillar on left (2).

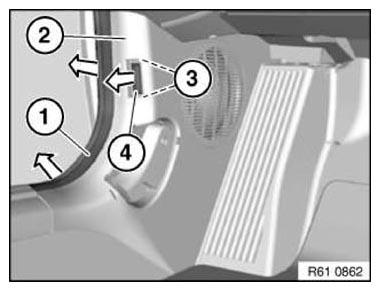

Fig 1: Removing Unlocking Rear Lid Switch

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove FOOTWELL SIDE TRIM PANEL ON A-PILLAR, LEFT .

Disconnect associated plug connection and remove switch for unlocking rear lid (4).
