61 31 052 Removing and installing center console control panel
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove TRIM FOR STORAGE COMPARTMENT

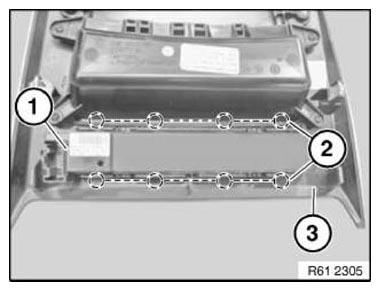

Unclip center console control panel (1) at points (2).
Remove center console control panel (1) from storage compartment (3).
Installation:
Make sure center console control panel (1) is correctly engaged.
