61 13... Removing and installing/replacing OBD-II socket

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 315

Necessary preliminary tasks:

Remove FOOTWELL SIDE TRIM PANEL ON A-PILLAR, LEFT

Release screws (1).

Remove OBD-II socket (2) from holder (3).

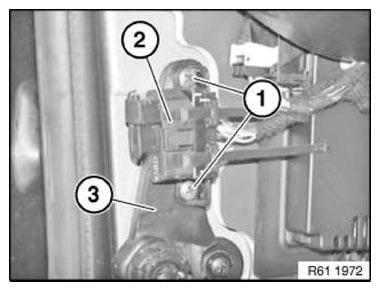

Fig 1: Identifying Screws, OBD-II Socket And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Remove OBD-II socket cover (2) from OBD-II socket (1).

Unlock slide plate (3) with a suitable tool in direction of arrow.

Insert special tool 61 0 315 in OBD-II socket (1) in direction of arrow and press out associated flat spring contact (4). Press remaining flat spring contacts with special tool 61 0 315 out of OBD-II socket (1).

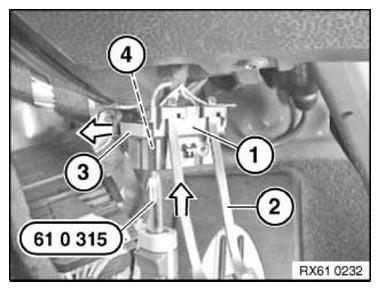

Fig 2: Removing OBD-II Socket Slide Plate Using Special Tool (61 0 315)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pay attention to pin assignment of OBD-II socket (1).

Make sure flat spring contacts and slide plate (3) are correctly engaged and seated in OBD-II socket (1).
