61 13 050 Removing and installing/replacing fuse box in passenger compartment

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe SAFETY INFORMATION FOR HANDLING VEHICLE BATTERY .

Necessary preliminary tasks:

Remove JUNCTION BOX ELECTRONICS .

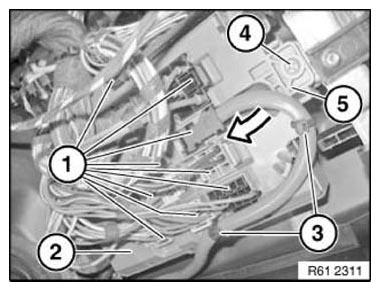

Unlock plug connections (1) on passenger compartment fuse box (2) and disconnect.

Release cable tie (3).

Release screw (4).

Fold down passenger compartment fuse box (5) in direction of arrow.

Fig 1: Folding Passenger Compartment Fuse Box

Courtesy of BMW OF NORTH AMERICA, INC.

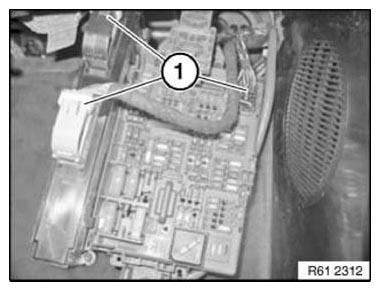

Unlock plug connections (1) and disconnect.

Fig 2: Identifying Passenger Compartment Fuse Box Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

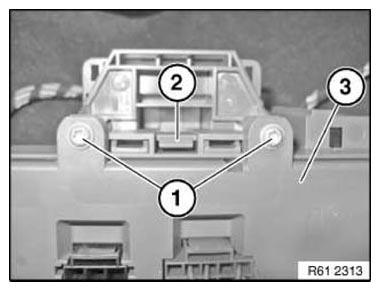

Release screws (1).

Unlock retainer (2) and remove passenger compartment fuse box (3).

Fig 3: Identifying Passenger Compartment Fuse Box, Retainer And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove JUNCTION BOX ELECTRONICS .

Remove fuses.
