61 35 107 Removing and installing or replacing junction box electronics

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Clamp off BATTERY NEGATIVE LEAD
Remove TRIM FOR INSTRUMENT PANEL , bottom right

Unfasten plug connection (1) and disconnect.

Release screw (2).

Fold down passenger compartment fuse box (3) in direction of arrow.

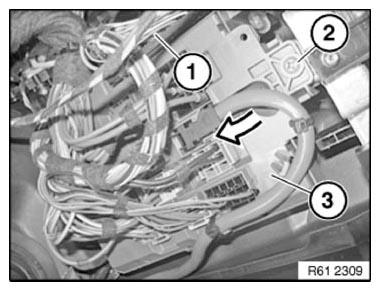

Fig 1: Folding Passenger Compartment Fuse Box

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Release screws (2) and pull junction box electronics (3) out of holder in direction of arrow.

Installation:

Make sure junction box electronics (3) are correctly seated.

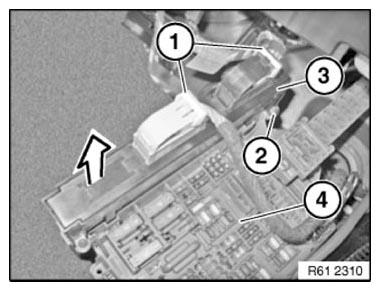

Fig 2: Removing Junction Box Electronics From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .

Delete transport mode.
