61 67 083 Removing and installing/replacing left or right high-pressure nozzle of headlight washer system
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove COVER FOR HEADLIGHT WASHER SYSTEM
- Remove FRONT BUMPER TRIM .

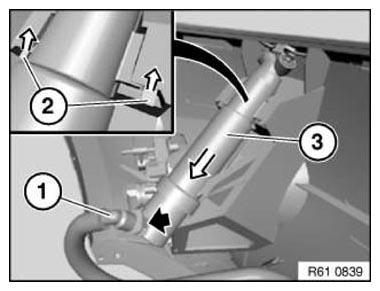

Unlock high-pressure line (1) and detach from high-pressure nozzle of headlight washer system (3).
Pull locks (2) in direction of arrow.
Pull high-pressure nozzle of headlight washer system (3) in direction of arrow out of guides and feed out through opening in bumper trim.
Installation:
Make sure high-pressure nozzle of headlight washer system (3) is correctly seated.
New high-pressure nozzle of headlight washer system (3) is already preadjusted.
