61 33 040 Removing and installing/replacing a fanfare horn

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT LEFT WHEEL ARCH COVER

Unlock plug connections (1) and disconnect.

Release screws (2) and remove fanfare horn (3) complete with holder.

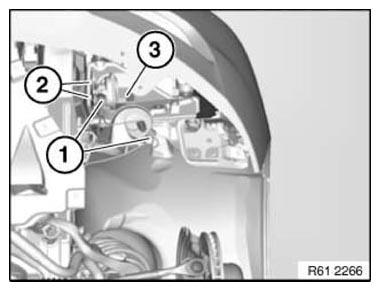

Fig 1: Identifying Fanfare Horn, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Slacken nut (1).

Remove holder (2) from air horn (3).

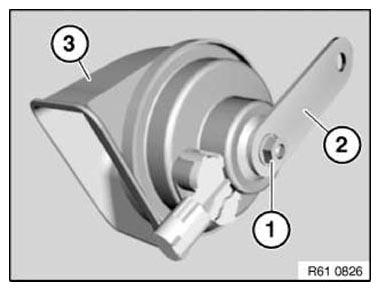

Fig 2: Identifying Air Horn, Holder And Nut

Courtesy of BMW OF NORTH AMERICA, INC.
