61 35 953 Removing and installing/replacing interior aerial for comfort access system
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove TRIM FOR STORAGE COMPARTMENT

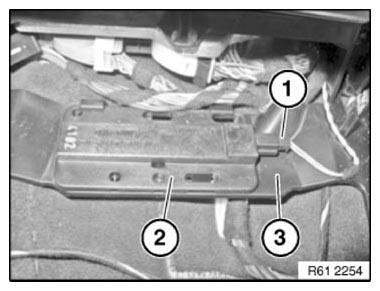

Disconnect plug connection (1).
Unlock and remove interior aerial for comfort access system (2) from holder (3).
Installation:
Make sure interior aerial for comfort access system (2) is correctly seated in designated holder (3).
