61 34... Removing and installing/replacing 12-V socket in the front storage compartment

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 250

Necessary preliminary tasks:

Remove COVER FOR FRONT STORAGE COMPARTMENT

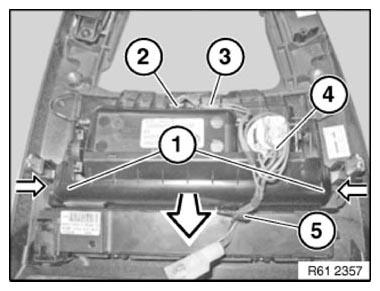

Press together tabs in direction of arrow and remove the cover (1) forwards.

Expose cable at positions (3) and (5).

Carefully unclip lighting from storage compartment (2) and socket (4).

Fig 1: Removing Front Storage Compartment 12V Socket Cover

Courtesy of BMW OF NORTH AMERICA, INC.

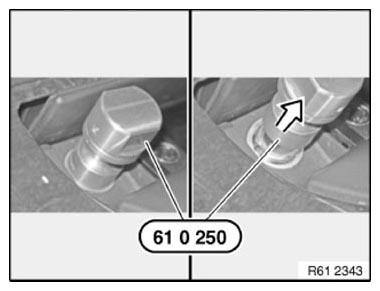

Pull the 12-V socket with special tool 61 0 250 from the storage compartment housing until the connector is below on the light ring.

Fig 2: Removing 12V Socket Using Special Tool (61 0 250)

Courtesy of BMW OF NORTH AMERICA, INC.

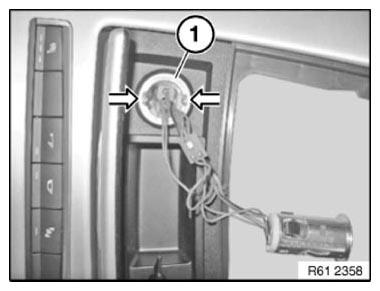

Unlock tabs with suitable tool in direction of arrow and release light ring (1).

Pull out 12-V socket completely, including light ring and cable.

Fig 3: Unlocking Light Ring Tabs

Courtesy of BMW OF NORTH AMERICA, INC.
