34 21 169 Removing and installing/replacing a brake anchor plate/brake guard plate at rear
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:

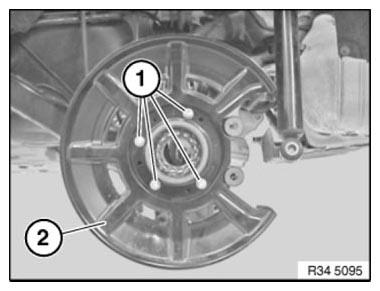

Release screws (1).
Installation:
Replace bolts.
Tightening torque 34 21 3AZ .
Remove retaining plate (2).
