34 41 295 Removing and installing control unit for parking brake

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT TRIM on side panel on right

Remove control unit (1) from electronics box.

Disconnect plug connection.

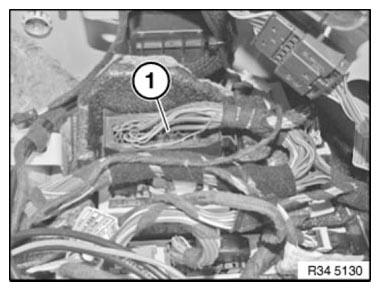

Fig 1: Identifying Electronics Box Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/encoding of control units.
