22 11 110 Replacing Left Engine Support Arm (N54)

WARNING: This page is about a different car, the 2010 BMW X6, 2009 BMW X6, and 2008 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Secure engine in installation position . See 11 00 670 SECURING ENGINE IN INSTALLATION POSITION (N54) .
Remove intake filter housing . See 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (N54) .
Remove charge air duct . See 11 61 368 REMOVING AND INSTALLING/REPLACING REAR LEFT CHARGE-AIR DUCT (N54) .

Release nut (1) on grounding strap.

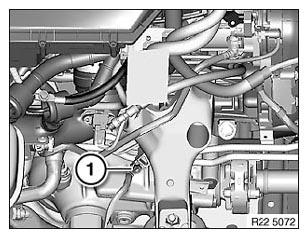

Fig 1: Identifying Grounding Strap Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove engine support arm.

Tightening torque. See 22 11 3AZ in 22 11 ENGINE SUSPENSION .

Fig 2: Identifying Engine Support Arm Screws

Courtesy of BMW OF NORTH AMERICA, INC.
