22 11 100 Replacing Right Engine Support Arm (N54)
WARNING: This page is about a different car, the 2010 BMW X6, 2009 BMW X6, and 2008 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Secure engine in installation position . See 11 00 670 SECURING ENGINE IN INSTALLATION POSITION (N54) .
- Remove catalytic converter for cylinders 1-3 . See 18 32 050 REMOVING AND INSTALLING/REPLACING CATALYTIC EXHAUST-GAS CONVERTER FOR CYLINDERS 1-3 (N54) .
Observe safety instructions on raising the vehicle . See 00....... LIFTING VEHICLE WITH A LIFTING PLATFORM .

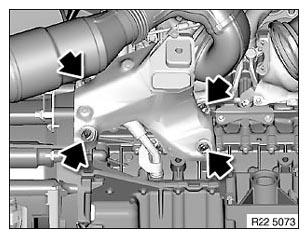

Release screws.
Tightening torque. See 22 11 3AZ in 22 11 ENGINE SUSPENSION .
Remove engine support arm.
