18 32 081 Removing And Installing/Replacing Exhaust Pipe With Catalytic Converter For Cylinders 4-6 (N54)

WARNING: This page is about a different car, the 2010 BMW X6, 2009 BMW X6, and 2008 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 210 . See 00 2 210 EXHAUST PIPE CUTTER .

WARNING: Scalding hazard!
Only perform these tasks after exhaust system has cooled down.

NOTE: Cutting line for exhaust pipe (2) is designated by a notch in the pipe.
Cut exhaust pipe (2) at marked point and deburr.

Fig 1: Identifying Marked Point For Cutting Exhaust Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

Cut exhaust pipe with special tool 00 2 210 at marked point and deburr.

Fig 2: Cutting Exhaust Pipe Using Special Tool 00 2 210

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts for right exhaust pipe.

Installation:

Replace self-locking nuts.
Replace seal.
Tightening torque. See 18 00 1AZ in 18 00 EXHAUST ASSEMBLY .

Fig 3: Locating Exhaust Pipe Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw.

Tightening torque. See 18 20 1AZ in 18 20 EXHAUST SYSTEM SUSPENSION .

Remove bracket (1) and then exhaust pipe.

Fig 4: Identifying Exhaust Pipe Bracket With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect exhaust pipe to center muffler by means of clamp and align.

Align clamp and tighten down.

Tightening torque. See 18 00 5AZ in 18 00 EXHAUST ASSEMBLY .

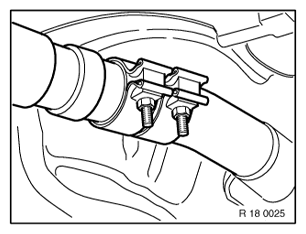

Fig 5: Connecting Exhaust Pipe To Center Muffler Using Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check exhaust system for leaks.
