18 32 060 Removing And Installing/Replacing Catalytic Exhaust Gas Converter For Cylinders 4-6 (N54)

WARNING: This page is about a different car, the 2010 BMW X6, 2009 BMW X6, and 2008 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

18 0 110 . See 18 0 110 GAUGE

WARNING: Scalding hazard!
Only perform these tasks after exhaust system has cooled down.

Necessary preliminary tasks:

Replacing right engine mount . See 22 11 001 REPLACING RIGHT ENGINE MOUNT (N54) .

Release oxygen sensor

Installation:

Tightening torque. See 11 78 1AZ in EMISSION CONTROL .

Unfasten clip. In so doing, secure catalytic converter (1) against falling out.

Remove catalytic converter (1).

Installation:

Clean sealing face and replace seal.

Tightening torque. See 18 31 3AZ in 18 31 EXHAUST PIPE WITH CATALYTIC CONVERTER/COMPLETE SYSTEM .

Fig 1: Identifying Catalytic Converter And Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Align exhaust pipes with special tool 18 0 110.

Add final details to vehicle.

Check exhaust system for leaks.

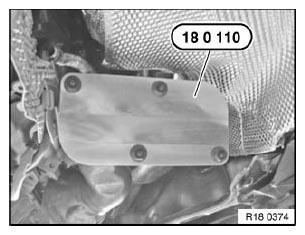

Fig 2: Aligning Exhaust Pipes Using Special Tool 18 0 110

Courtesy of BMW OF NORTH AMERICA, INC.
