61 12 850 Replacing ribbon cable (CAS)

IMPORTANT: Read and comply with notes on handling wiring harnesses and cables.

Necessary preliminary tasks:

Disconnect plug connection (1).

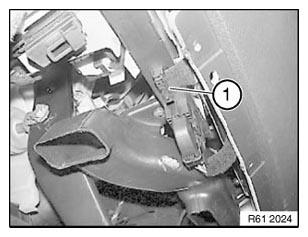

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Instrument panel (2) removed for purposes of clarity.

Pull off insulating tape (1) with ribbon cable (3) from instrument panel (2).

Installation:

Make sure ribbon cable is laid correctly.

Secure ribbon cable with new insulating tape to instrument panel (2).

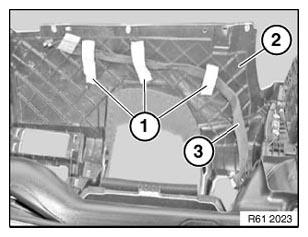

Fig 2: Identifying Instrument Panel And Ribbon Cable

Courtesy of BMW OF NORTH AMERICA, INC.
