61 31 014 Removing and installing/replacing Start/Stop switch

IMPORTANT: In the event of complaint "slide-in unit for radio-operated key jams or can not be retained", carry out following checks before replacement:

Check both sides of plug connection of ribbon cable (2) to slide-in unit for radio-operated key (1) for correct locking (3).
Check ribbon cable (4) for damage.

If required, lock plug connection of ribbon cable (2) correctly and carry out function check. If this rectifies fault pattern, do not replace slide-in unit for radio-operated key.

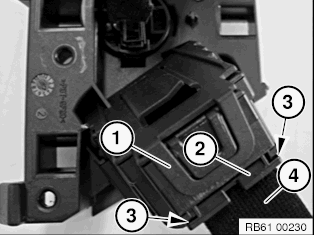

Fig 1: Checking Start/Stop Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

Remove decorative strip on instrument panel, driver's side, on right . See 51 45 374 REMOVING AND INSTALLING/REPLACING DECORATIVE STRIP ON INSTRUMENT PANEL ON DRIVER'S SIDE ON RIGHT .

Release screws (1).

Pull Start/Stop switch (2) forward a little.

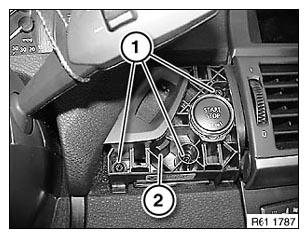

Fig 2: Identifying Start/Stop Switch And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1) and remove Start/Stop switch.

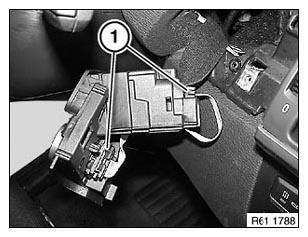

Fig 3: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
