65 12... Removing and installing/replacing aerial/antenna splitter (IBOC) (US version only)

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection) , see 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Release screws (1).

Disconnect plug connections (2) and remove aerial/antenna splitter (3).

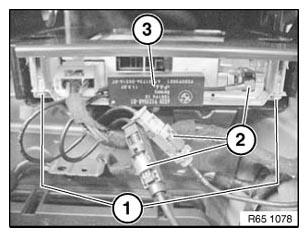

Fig 1: Identifying Plug Connections And Antenna Splitter

Courtesy of BMW OF NORTH AMERICA, INC.
