61 62 150 Removing and installing/replacing window washer pump for rear window washer system
Necessary preliminary tasks
- Remove TRIM PANEL FOR COVER ON FRAME SIDE MEMBER on right.
- Remove WHEEL ARCH TRIM AT FRONT right.
- Drain fluid reservoir for windscreen washer system

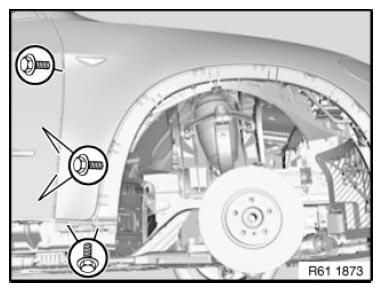

Release screws
Press off side panel slightly.
NOTE:
Side panel shown removed for purposes of clarity.

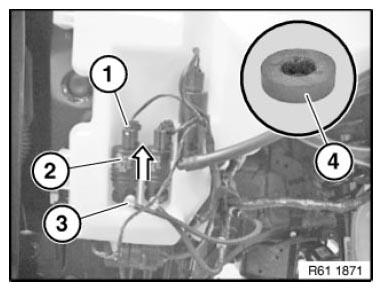

Disconnect plug connection (1).
Pull windscreen washer pump (2) in direction of arrow out of fluid reservoir for windscreen washer system.
Disconnect hose plug connection (3) from windscreen washer pump (2).
Installation:
Coat sealing ring (4) of windscreen washer pump (2) with antiseize agent.
Ensure hose is laid without kinks.
