61 31 492 Replacing level switch for windscreen washer system
Necessary preliminary tasks
- Release WHEEL ARCH COVER at front (rear section) right in working area and pull forwards

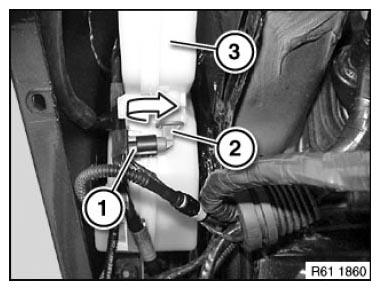

Disconnect plug connection (1).
Turn level switch for windscreen washer system (2) in direction of arrow and remove towards bottom from fluid reservoir for windscreen washer system (3).
