61 12 062 Replacing wiring harness for front bumper

IMPORTANT: Read and comply with notes on HANDLING WIRING HARNESSES and cables.

Necessary preliminary tasks

NOTE: Work is shown on the E70 by way of example. There may be differences in detail in the case of other vehicle models.

Disconnect plug connections for ultrasonic transducer (1).

Unclip or feed out wiring harness for front bumper (2) from bumper trim and remove.

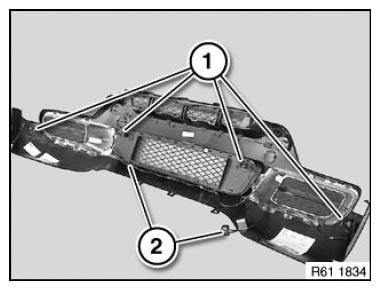

Fig 1: Identifying Ultrasonic Transducer And Front Bumper

Courtesy of BMW OF NORTH AMERICA, INC.
