52 14 041 Removing and installing inner cover on left or right front seat

Necessary preliminary tasks:

• Remove FRONT SEAT

Release screw (1).

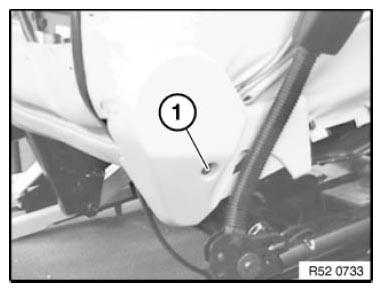

Fig 1: Identifying Front Seat Inner Cover Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Cover is secured by guide (2) in bore hole (1).

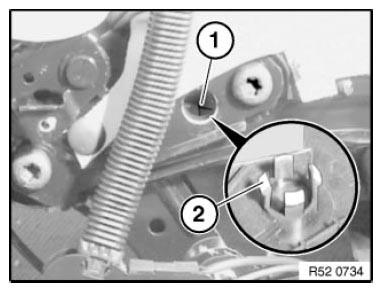

Fig 2: Identifying Guide And Bore Hole

Courtesy of BMW OF NORTH AMERICA, INC.
