52 14 000 Removing and installing left or right front seat

Necessary preliminary tasks

Remove front head restraint . See 52 17 390 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT HEAD RESTRAINT (COMFORT) , 52 14 390 REMOVING AND INSTALLING OR REPLACING FRONT LEFT OR RIGHT HEAD RESTRAINT , 52 16 390 REMOVING AND INSTALLING OR REPLACING FRONT LEFT OR RIGHT HEAD RESTRAINT , 52 13 390 REMOVING AND INSTALLING OR REPLACING FRONT LEFT OR RIGHT HEAD RESTRAINT (NORMAL/SEMI-ELECTRIC) , 52 16 392 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT CRASH-ACTIVE HEADREST or 52 14 392 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT CRASH-ACTIVE HEADREST .

WARNING: Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt pretensioners.
Improper handling can lead to triggering of the pyrotechnical seat belt pretensioner or side airbag, resulting in injuries.

Switch off ignition!

Move front seat upwards.

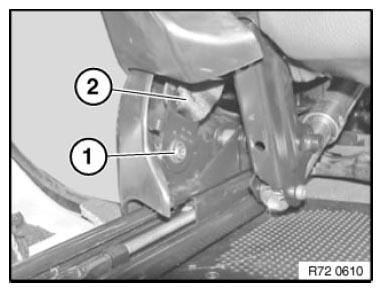

Release screw (1) on front seat.

Installation:

Replace screw.

Tightening torque 72 11 02AZ .

Feed out belt anchor fitting (2).

Fig 1: Identifying Belt Anchor Fitting And Front Seat Screw

Courtesy of BMW OF NORTH AMERICA, INC.

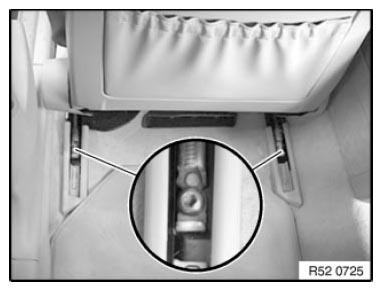

Move front seat forwards.

Release screws.

Installation:

Replace screws.

Tightening torques 52 10 01AZ .

Fig 2: Identifying Front Seat Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Removing cover on left and right:

Move front seat towards rear.

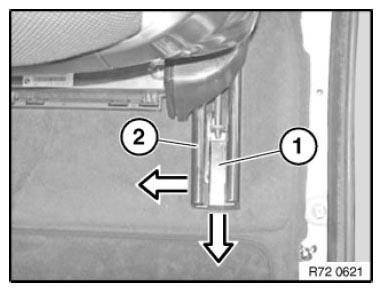

Carefully raise lug (1).

At same time, unlock inner side (2) in direction of arrow.

Remove cover in direction of arrow towards front.

Fig 3: Raising Lug

Courtesy of BMW OF NORTH AMERICA, INC.

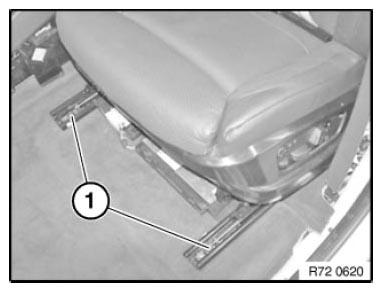

Release screws (1).

Installation:

Replace screws.

Tightening torque 52 10 01AZ .

Fig 4: Identifying Front Seat Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Carpet must not project between seat rail and floor board in area of screw-down points (grinding noises).

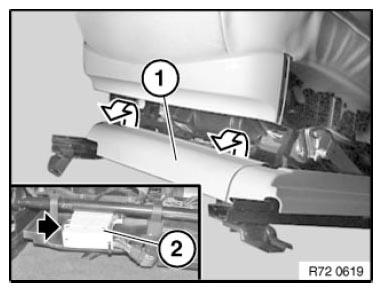

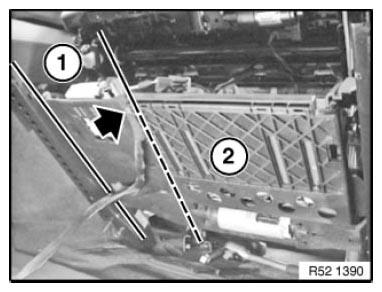

Unclip cover (1) towards front.

Unfasten plug connection (2) and disconnect.

Unclip wiring harness from seat mechanism.

IMPORTANT: Cover door sill with protective covers (risk of damage).

Fig 5: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out front seat.

Installation:

Make sure wiring harness is correctly routed in order to avoid grating noises, jamming or collisions.

Clip in cable holder for wiring harness.

Lay wiring harness only in area (1) of cover.

Fitting the wiring harness between the carpet and the cover in control unit area (2) will result in grating noises.

Carry out a complete longitudinal adjustment (forward/back) with front seat.
