52 14 392 Removing and installing/replacing front left or right crash-active headrest

WARNING: Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt tensioners.
Incorrect handling may result in triggering of the crash-active headrest and thereby cause injury.

Switch off the ignition!

Necessary preliminary tasks

Disconnect NEGATIVE BATTERY CABLE .
Remove REAR PANEL .

Unlock PLUG CONNECTION (1) and disconnect.

Pull out cotter pin (2).

If necessary, cut cable straps.

Fig 1: Identifying Plug Connection And Cotter Pin

Courtesy of BMW OF NORTH AMERICA, INC.

On vehicles from version 04/2010:

Loosen the retaining screw (1) from the head restraint (2).

Tightening torque 54 10 11AZ .

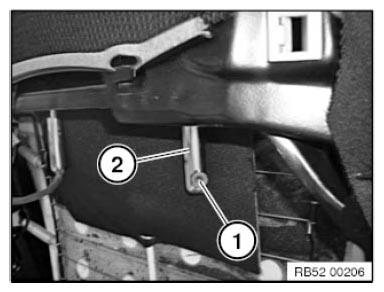

Fig 2: Identifying Head Restraint And Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out head restraint.

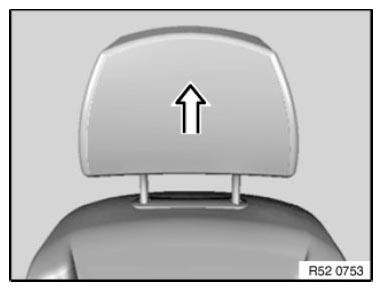

Fig 3: Lifting Out Head Restraint

Courtesy of BMW OF NORTH AMERICA, INC.
