63 11 800 Replacing left LED main light module left

Attention!

Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks

• Remove headlight  . See 63 12 140 REMOVING AND INSTALLING (REPLACING) LEFT HEADLIGHT WITH LED TECHNOLOGY  or 63 12 143 REMOVING AND INSTALLING (REPLACING) RIGHT HEADLIGHT WITH LED TECHNOLOGY

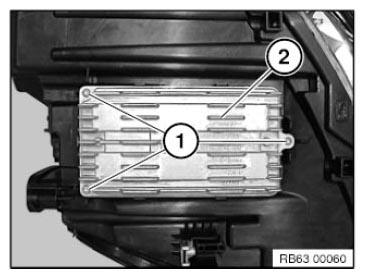

Release screws (1).

Tightening torque 63 11 1AZ .

Remove LED main light module (2).

Installation note  :

Gasket (1) for LED main light module (2) must not be damaged and must be installed free from grease.

Make sure LED main light module (2) is correctly installed.

Replacement:

Carry out PROGRAMMING/ENCODING .
