66 20 520 Removing and installing/replacing a front ultrasonic sensor (side)

Necessary preliminary work

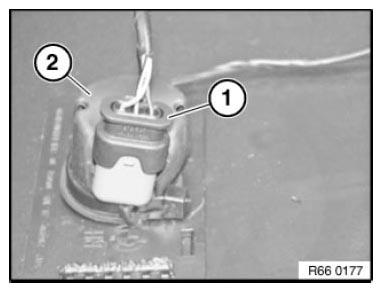

Disconnect plug connection (1) and remove rubber grommet (2).

Installation note:

Make sure rubber grommet (2) is correctly fitted!

Fig 1: Identifying Plug Connection And Rubber Grommet

Courtesy of BMW OF NORTH AMERICA, INC.

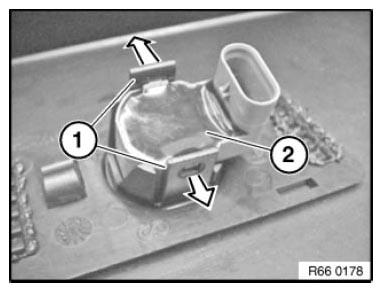

Unlock retaining tabs (1) in direction of arrow and pull ultrasound transducer (2) upward out of bracket.

Installation note:

Before installation of ultrasonic sensor (2) on wiring harness, clean plug connection!

Fig 2: Pulling Ultrasound Transducer

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure rubber ring (1) is correctly seated on ultrasonic sensor (2).

Fig 3: Identifying Ultrasonic Sensor And Rubber Ring

Courtesy of BMW OF NORTH AMERICA, INC.
