61 33 055 Removing and installing/replacing right fanfare horn

Necessary preliminary tasks:

E70/E71 without supplementary radiator:
Remove GRILLE IN BUMPER TRIM ON RIGHT .
E70/E71 with supplementary radiator:
Remove FRONT BUMPER TRIM .

NOTE: Work is shown on the E70 (without supplementary radiator) by way of example. There may be differences in detail in the case of other vehicle models.

WARNING: Risk of injury!

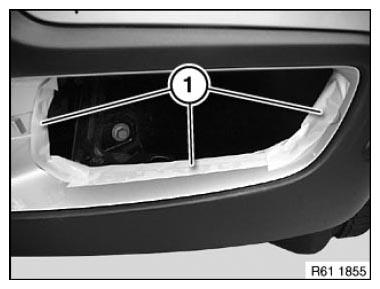

Tape off edges (1) of bumper trim.

Fig 1: Tapping Off Edges Of Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

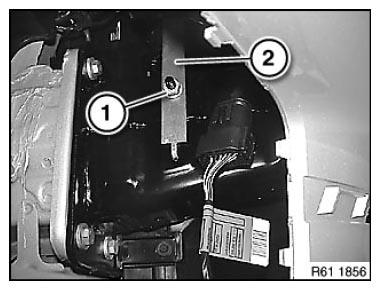

Release nut (1) and pull holder with fanfare horn (2) forwards slightly. Tightening torque 61 33 4AZ .

Disconnect associated plug connection and remove holder with fanfare horn (2).

Fig 2: Identifying Fanfare Horn And Nut

Courtesy of BMW OF NORTH AMERICA, INC.
