61 35 095 Removing and installing (replacing) control unit/module for seat heating (rear seat with rear cabin fan without 3rd seat row on left or right)
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .
Necessary preliminary tasks
- Disconnect BATTERY NEGATIVE LEAD .
- Unclip and raise REAR SEAT .

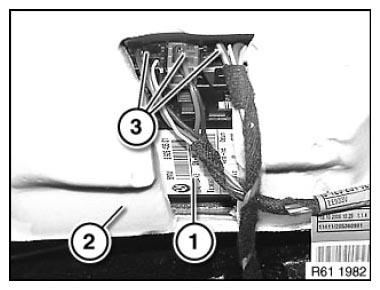

Feed control unit/module for seat heating (1) out of rear seat (2).
Disconnect plug connections (3) and remove control unit/module for seat heating (1).
Installation:
If necessary, set down rear seat (2) on body and feed control unit/module for seat heating (1) from rear (between rear seat and backrest) into rear seat (2).
Lay wiring harness so that it cannot be damaged when rear seat (2) is installed.
Make sure control unit/module for seat heating (1) is correctly seated in rear seat (2).
