52 26 005 Removing and installing / replacing rear seat

Unclip rear seat on left and right towards top.

Installation:

Feed seat belt buckles (1) into openings in rear seat.

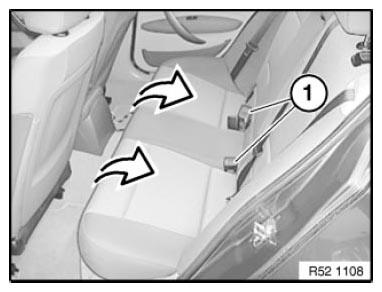

Fig 1: Feeding Seat Belt Buckles Into Openings In Rear Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Only on vehicles with seat heating and/or rear fan option:

Unlock plug connections (1) and disconnect.

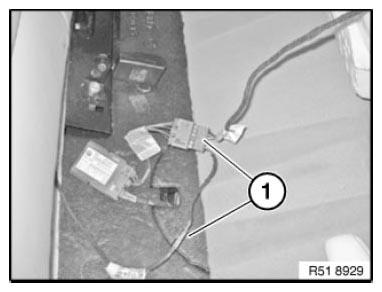

Fig 2: Identifying Seat Heating/Rear Fan Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on seat belt (middle).

Tightening torque 72 11 22AZ .

Installation:

Seat belt is coded against incorrect installation.

Feed out anchor fitting (2) through rear seat.

Lift out rear seat.

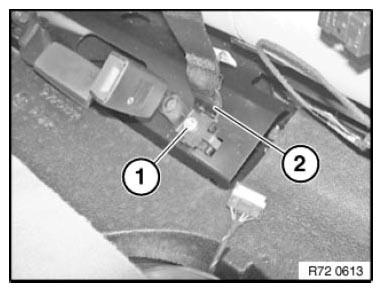

Fig 3: Identifying Anchor Fitting And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
